R1200 Glass Railing System
From Side to Side: Where Style Meets Stability. A side-mounted solution maximizing visual openness.
Product Overview
Glass Railing Systems by Asay Global are designed to maximize visual openness while delivering reliable safety solutions for modern architectural projects. By focusing on smart structural detailing and efficient use of space, these systems support clean lines and unobstructed views across residential and commercial environments.
The R1200 Glass Railing System by Asay Global is engineered as a side-mounted solution that offers excellent visibility and efficient space utilization. Thanks to its intelligent design, R1200 allows glass panels to be installed laterally, making it an ideal choice for balconies, terraces, and projects where maximizing usable floor area is essential. Its compact profile delivers a minimalist appearance while ensuring stable glass support, providing a refined balance between style and structural performance.

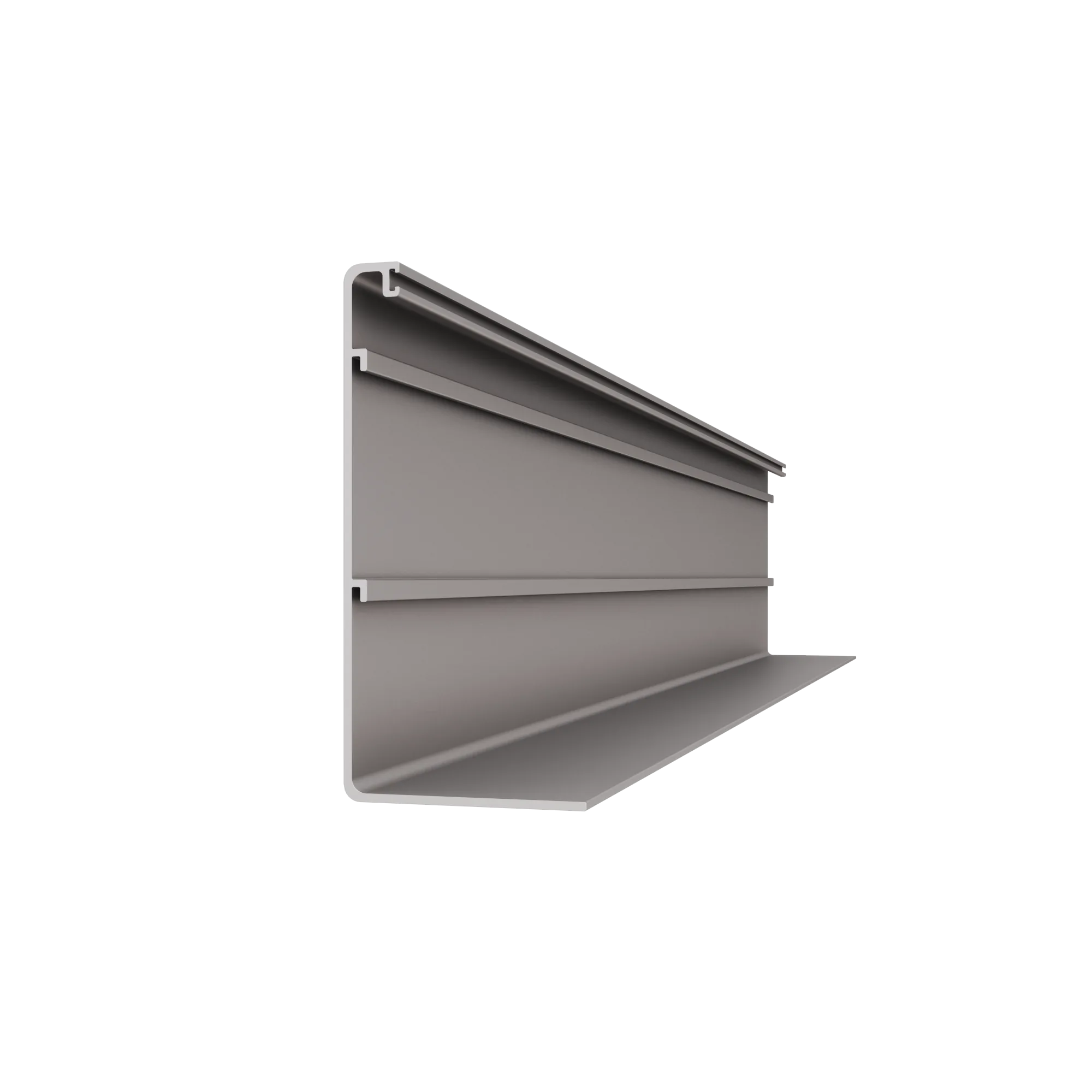

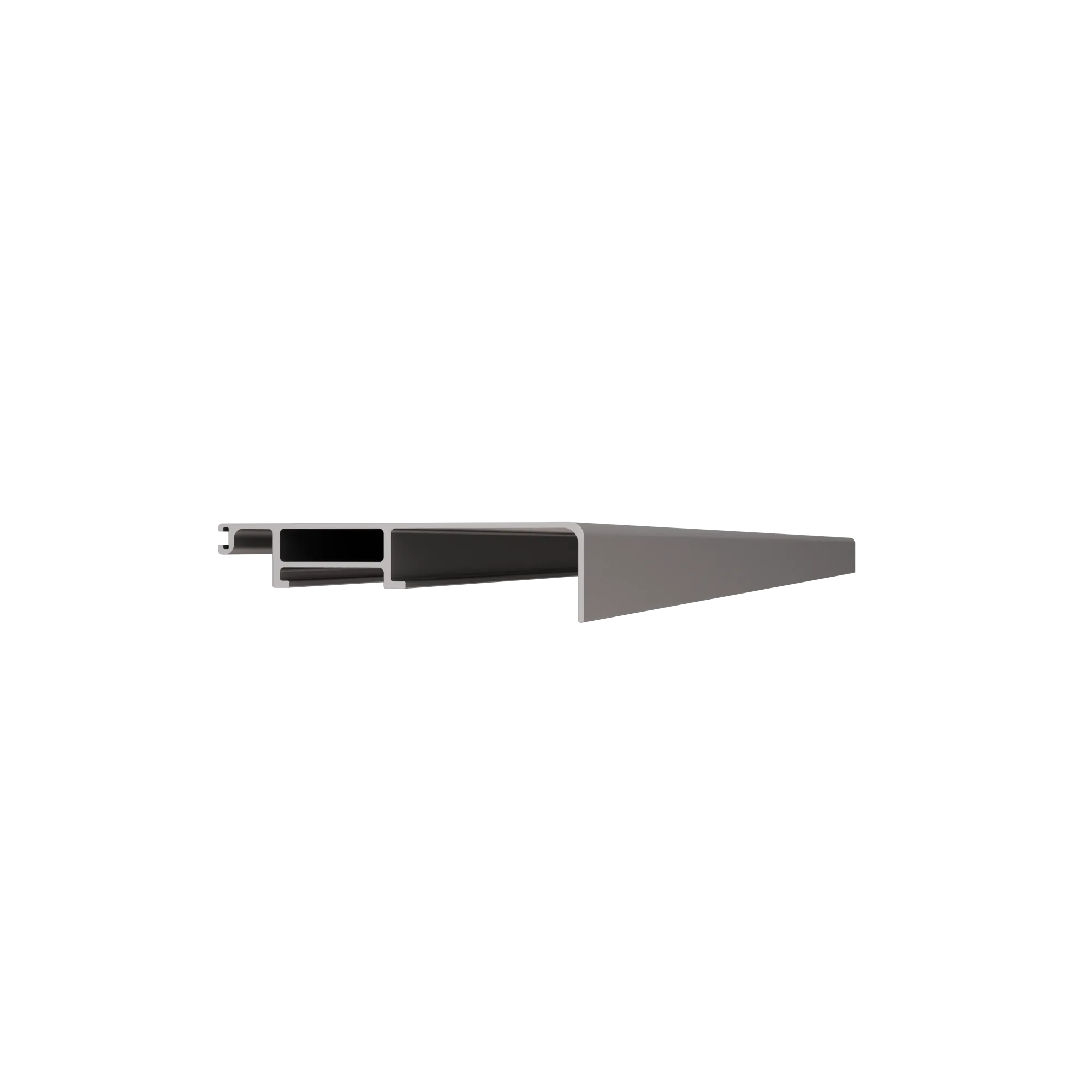

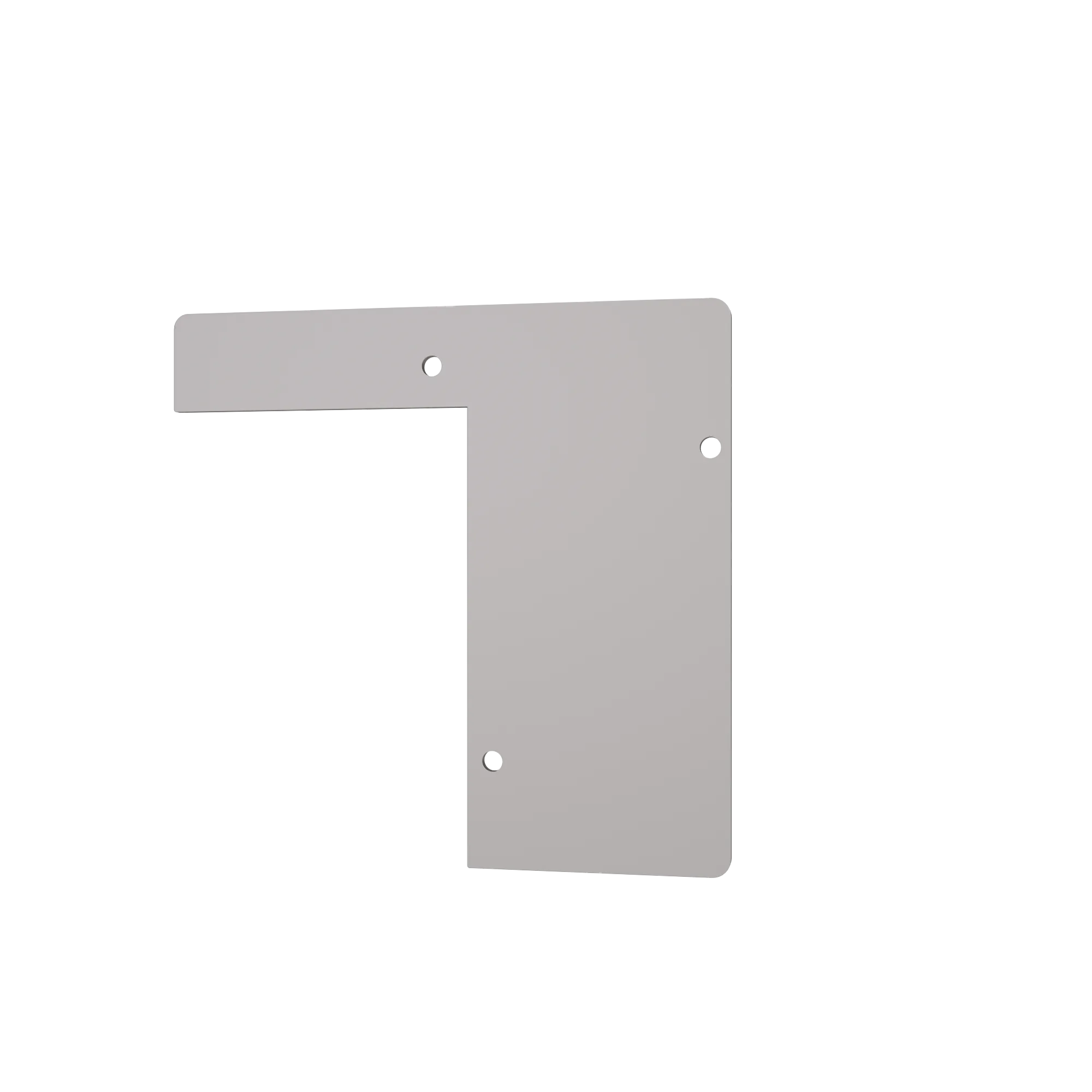

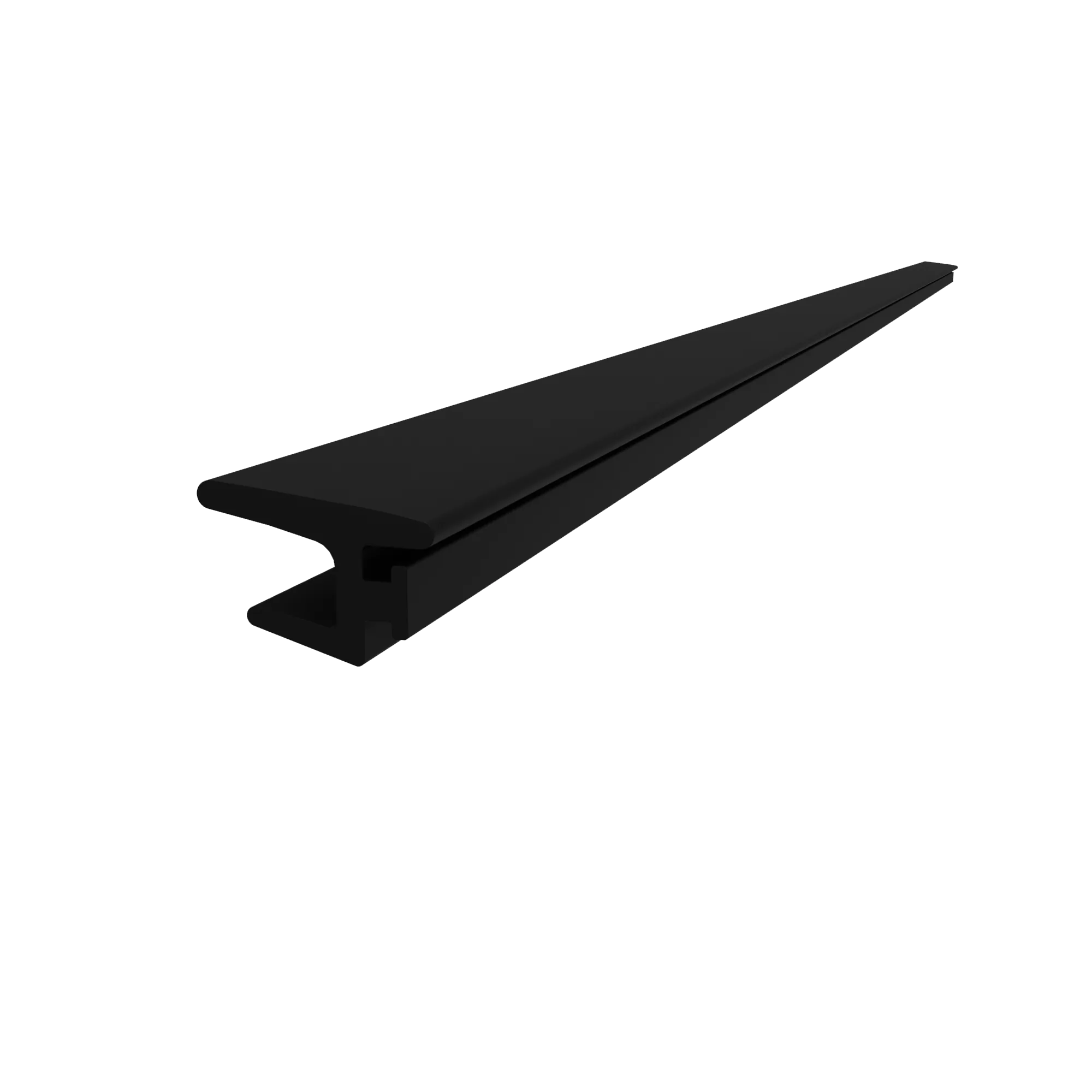

Technical Images
Technical Specifications – R1200
Base Profile Dimensions
49 × 77 mm (without cover)
Segment Lengths
140 mm, 280 mm
Compatible Glass Types
6+6 mm, 5+5 mm, 4+4 mm laminated glass
Glass Embedment Depth
68 mm
Installation Type
Side-mounted glass railing system
Technical Documents
Frequently Asked Questions (FAQ) – R1200
